Application of Optical Components in Lithography Machines

In lithography machines, the optical system is responsible for focusing and projecting the light beam emitted by the light source onto the silicon wafer to achieve the exposure of circuit patterns. Therefore, the design and optimization of optical components in lithography systems are crucial for enhancing the performance of lithography machines.

Projection Lens

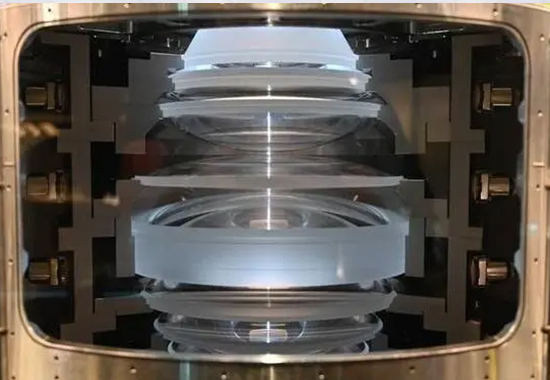

The projection lens in a lithography machine typically consists of a series of lenses, including convex lenses, concave lenses, and prisms. Its function is to focus and project the light beam emitted by the light source. In a lithography machine, the projection lens reduces the circuit pattern on the mask to a certain scale and then focuses it onto the photoresist-coated wafer.

Optical Alignment System

The optical alignment system like optical alignment cube in a lithography machine is primarily used to ensure the alignment accuracy between the photomask and the silicon wafer. During the lithography process, errors in equipment and materials can cause positional deviations between the photomask and the silicon wafer, leading to distortion or inaccuracy in the pattern shapes. Therefore, the alignment system uses precise optical components such as reference mirrors, standard lenses, and optical encoders to measure and adjust, ensuring high-precision alignment and imaging during the lithography process.

Optical Lenses

Optical Mirrors: Mirrors are used in lithography machines to change the direction of the light path, guiding the light to the correct position. The surface accuracy and stability of optical mirrors significantly impact the performance of the lithography machine.

Beam Splitters: Beam splitters from the leading beam splitter factory are optical components that divide a single light beam into multiple beams. They are used in lithography machines to generate multiple parallel beams, allowing simultaneous exposure of multiple chips.

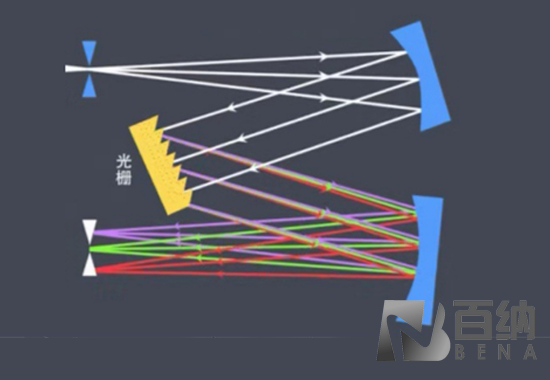

Gratings: Gratings are optical components that divide light into multiple sub-beams and control their phase and amplitude. They are used in lithography machines to create complex patterns and structures.

Filters: Filters manufactured by the optical filters company are used to filter out unwanted wavelengths of light, improving the precision and quality of lithography.
